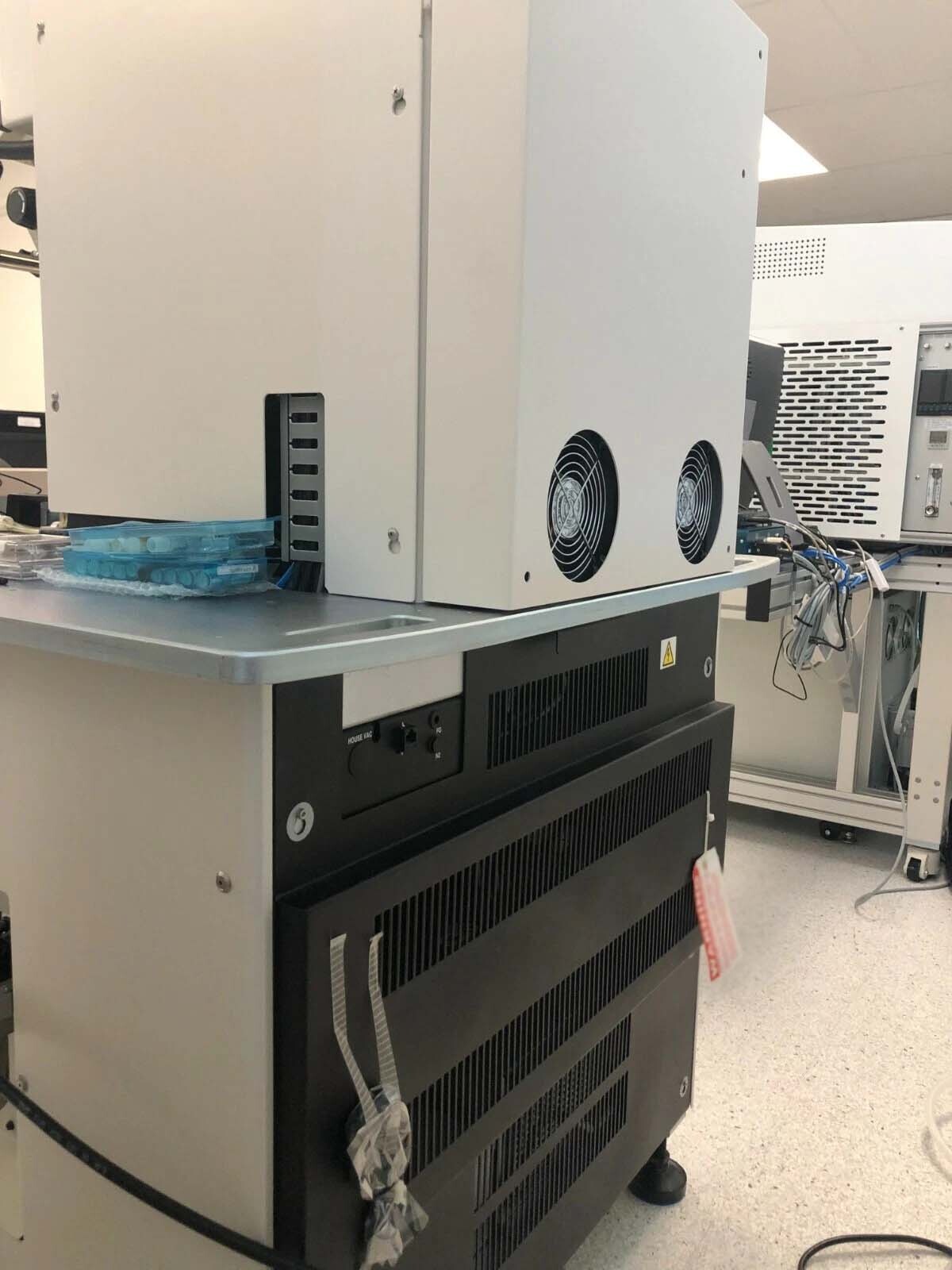

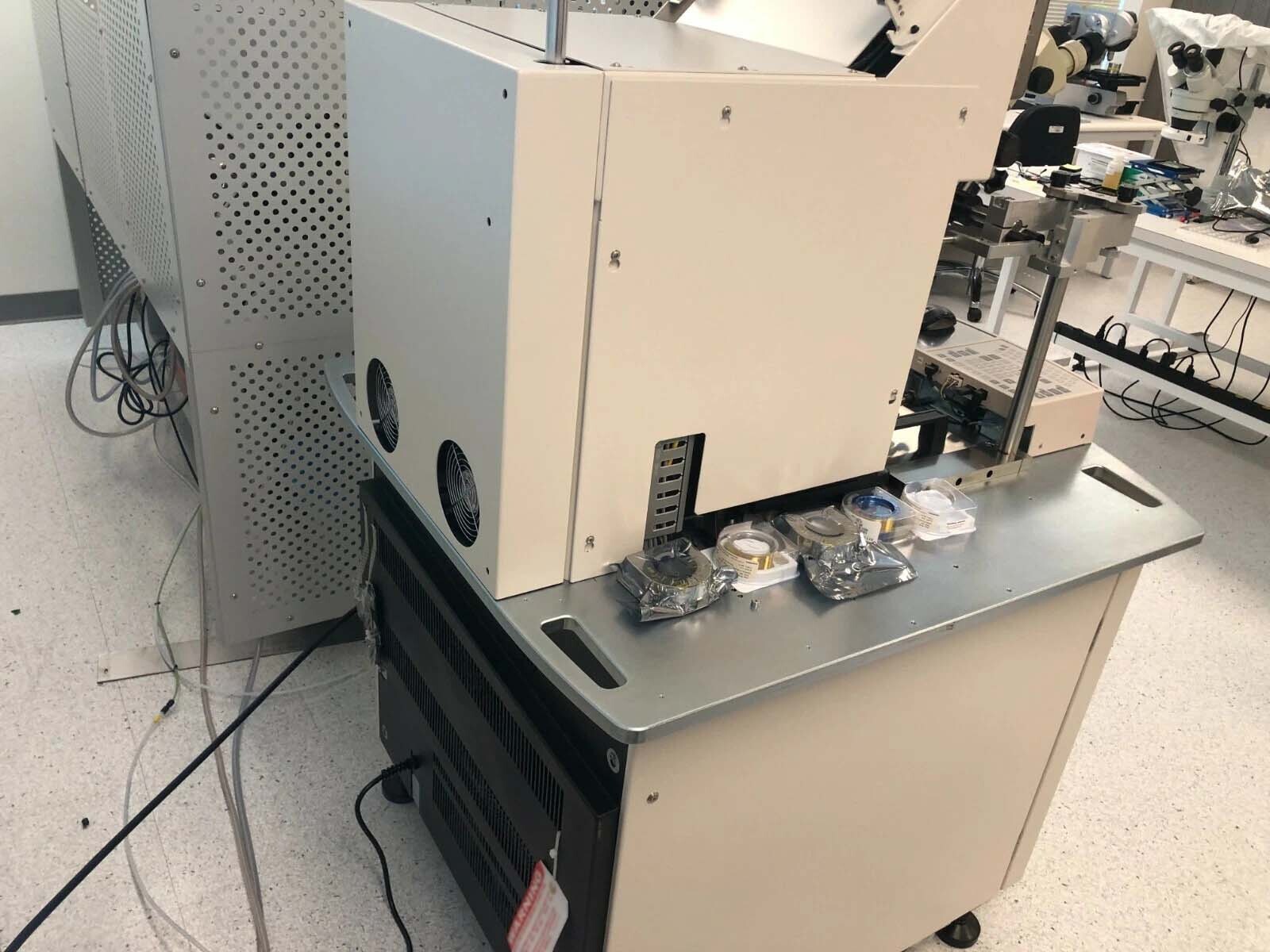

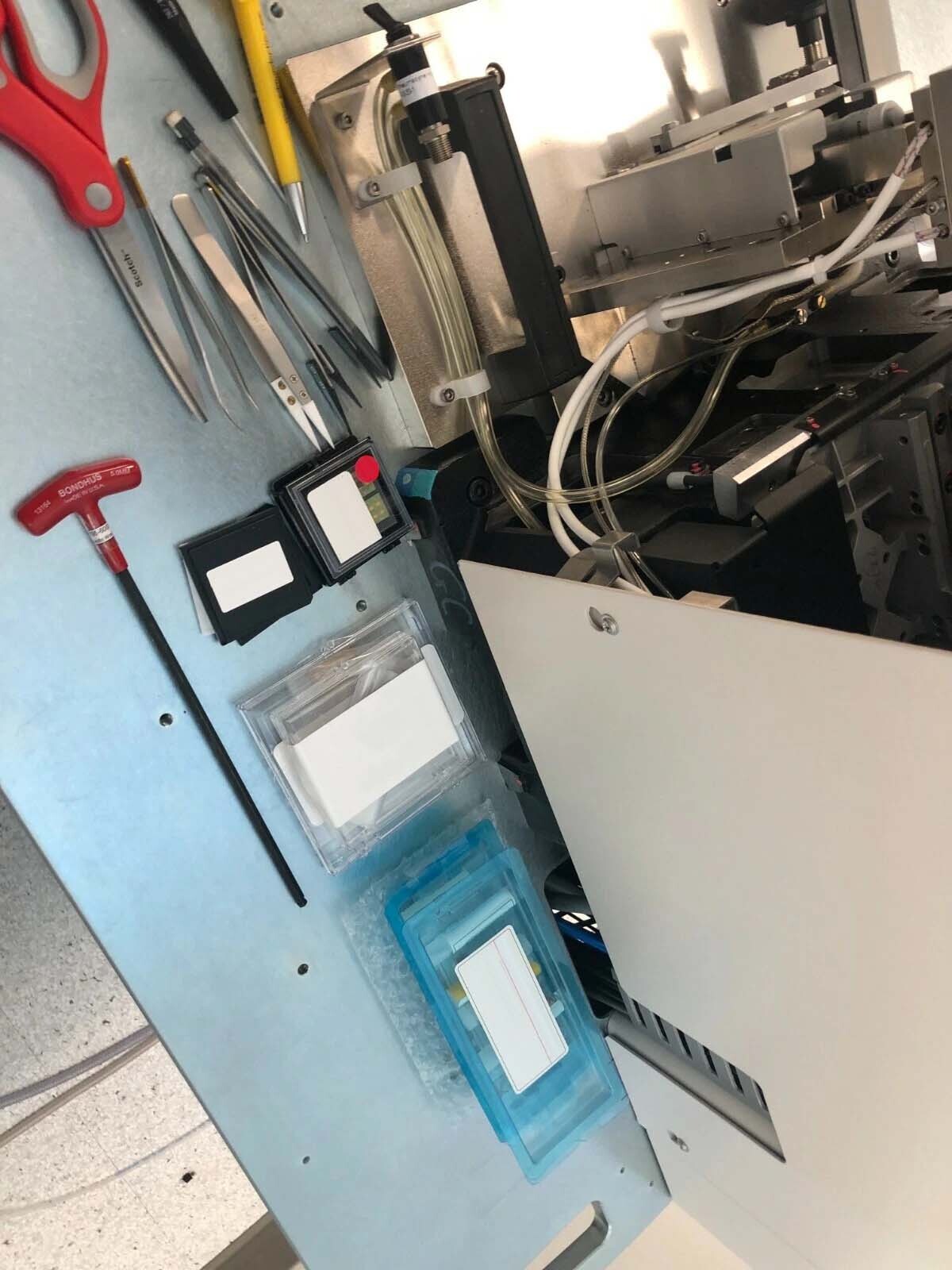

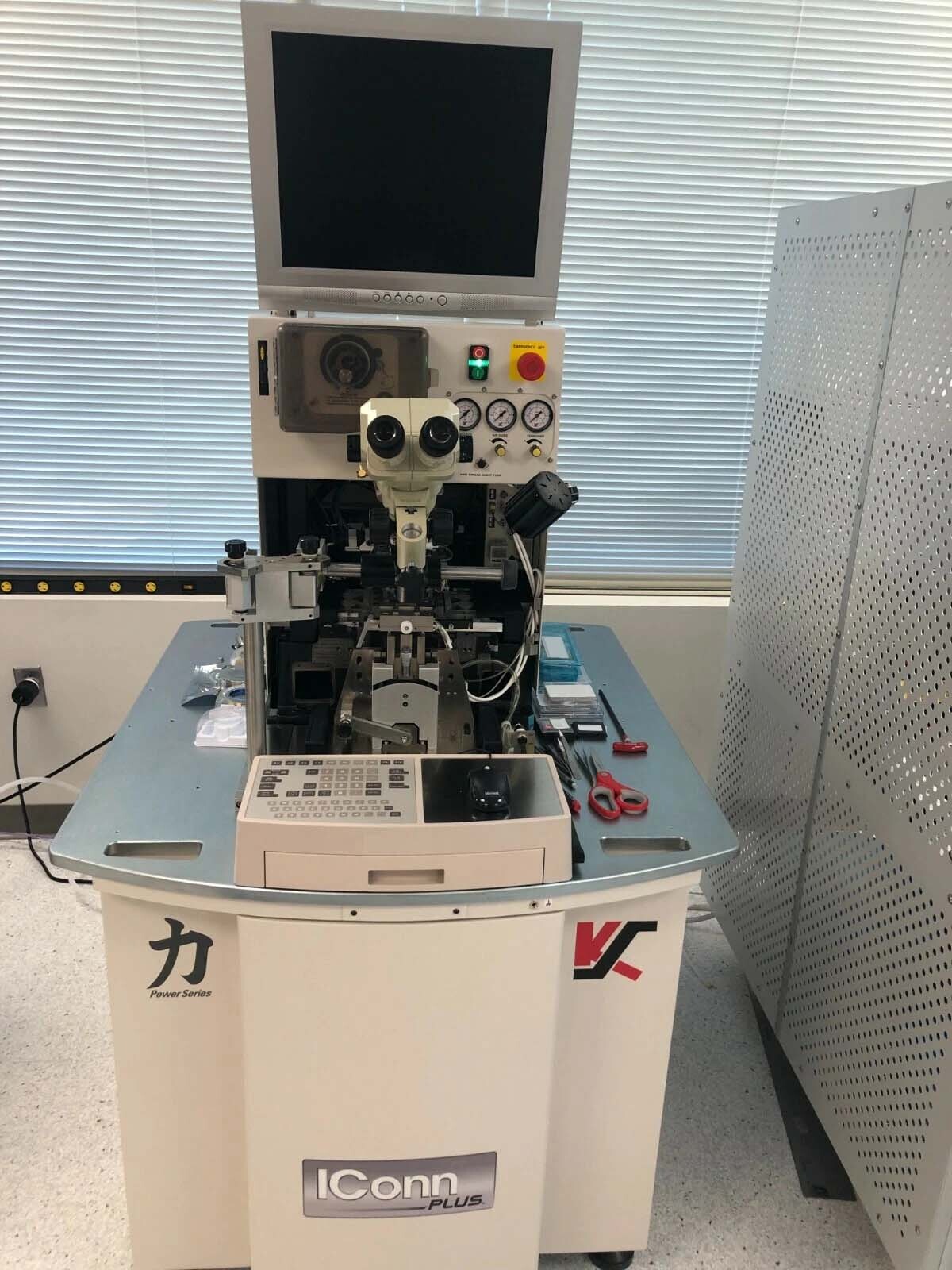

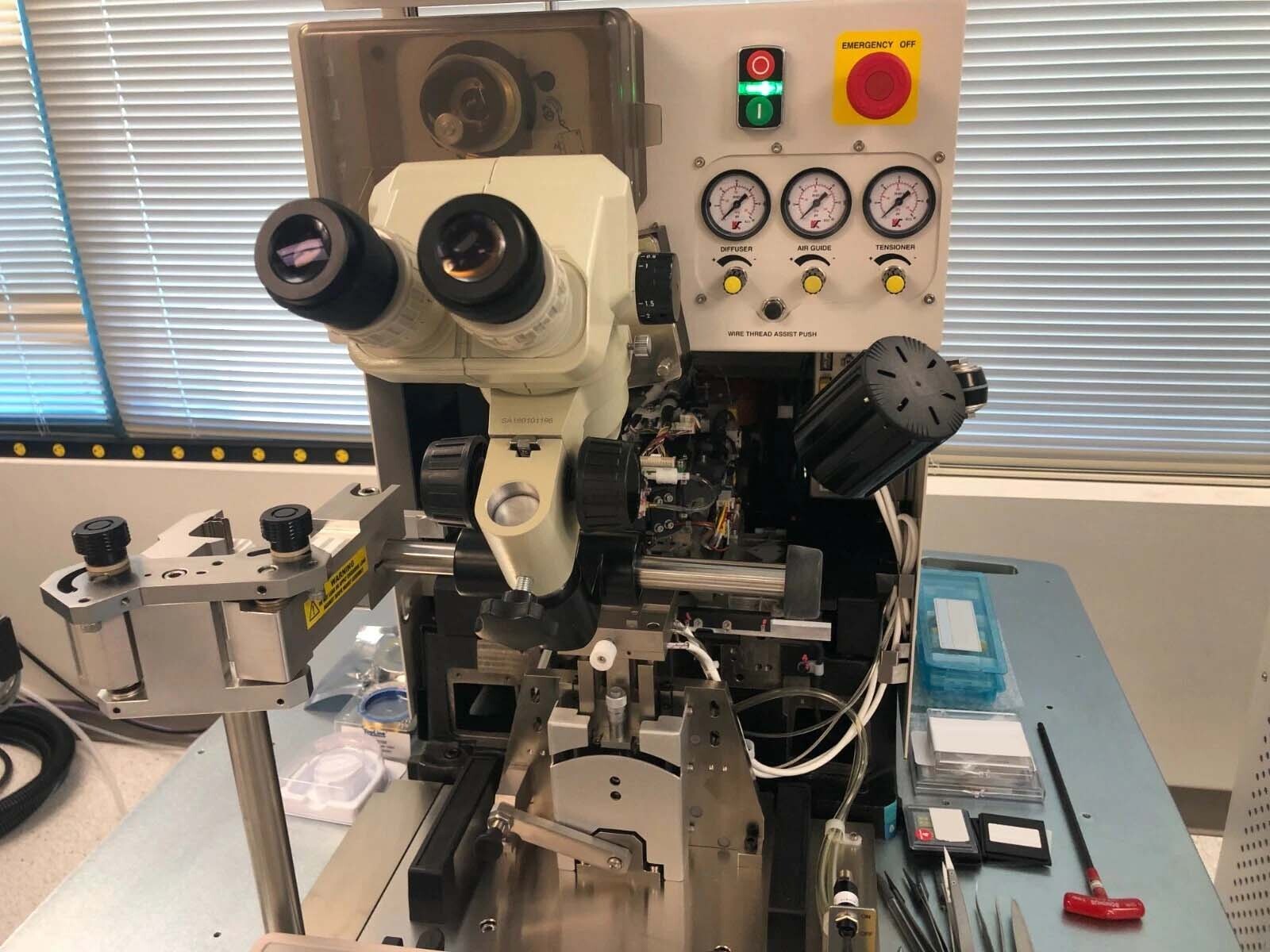

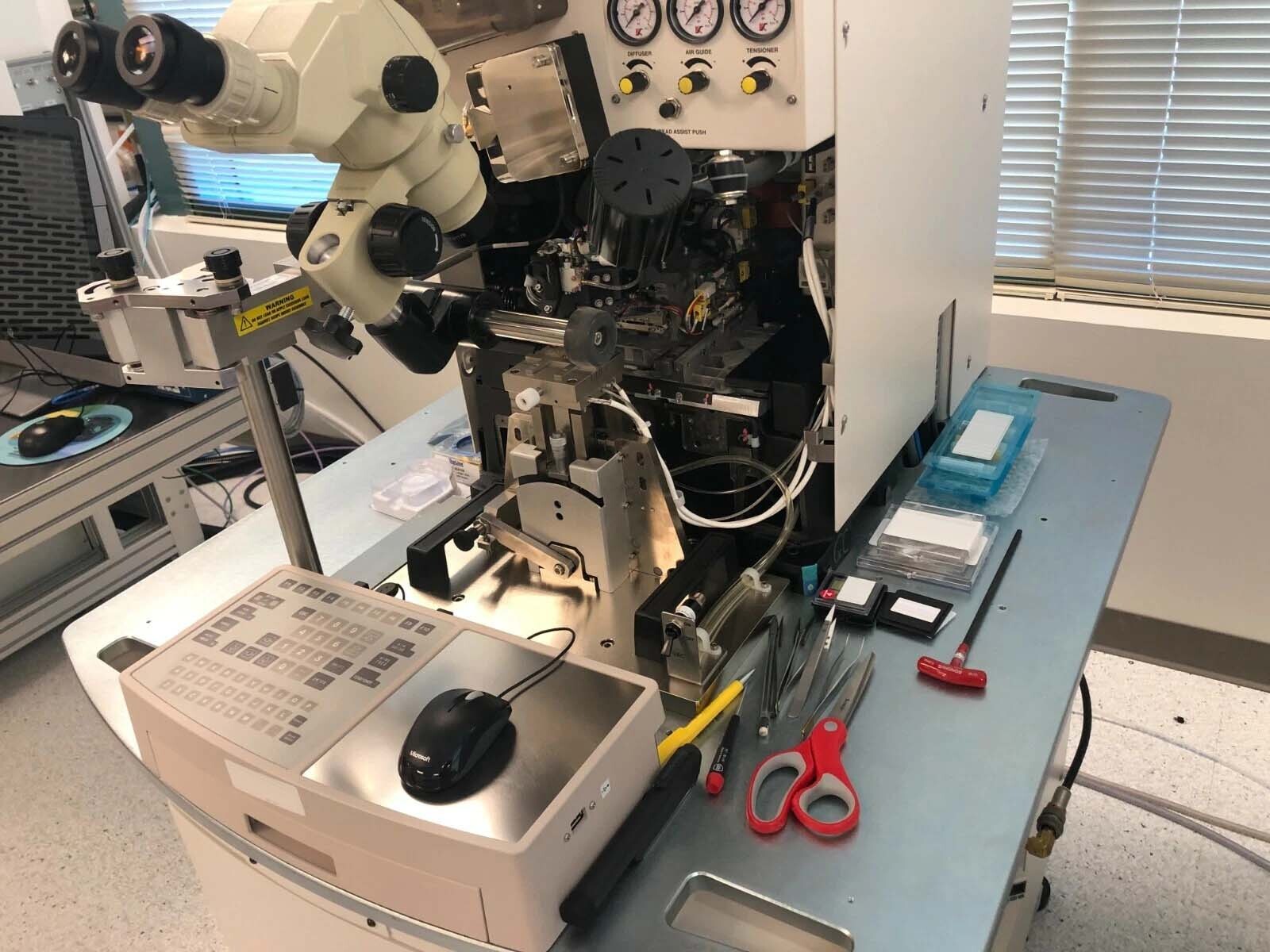

二手 K&S IConn Plus #293827644 待售

Wire bonder Process: Robustness Accuracy: ± 2.0 µm High performance: X-Y-Z Motion control system Dual-frequency transducer Power series advanced loop for tight control On-board process optimization tool Upgraded control system 1PF Auto-BITS Self-teach and optimization WAVI (Wide Angle Vertical Illumination) system with programmable red and blue lighting Optional programmable focus range: Full 2.5 mm Optional copper wire bonding kit Wire bonding capability: Ultra fine pitch: Au wire 35 μm inline Axis: X: 56 mm Y: 80 mm Scan vision engine CCD Video camera Dual magnification optics: 2x, 6x Looping capability: Maximum wire length: 7.6 mm with 1.0 mil wire, 3.0 mm with 0.6 mil wire Minimum loop height: Ultra-low loop, Power series low loop 40 µm, 0.6 mil wire Wire sway wire length: < 2.54 mm, 25 µm at 3 sigma Wire length: > 2.54 mm ± 1 % wire length at 3 sigma 2018 vintage.
